ITALCO - Competence in compressed air filter systems

Problem solving for any situation

Lack of adhesion, dust, fish eyes and other problems on coated surfaces are usually the result of problems in the compressed air supply. These mistakes are expensive. They can be avoided with 100% technically clean air. ITALCO offers the solution with a high quality, durable filter system.

Compressed air requirements are not always as high as required in the body shop. As a result, ITALCO filters are designed as a modular system so units can be specifically combined to meet any requirement.

Our knowledgeable distributors and dealers will be happy to provide advice.
Please use the ITALCO air quality test kit to evaluate compressed air quality. Helpful tips can also be found in the compressed air adviser.

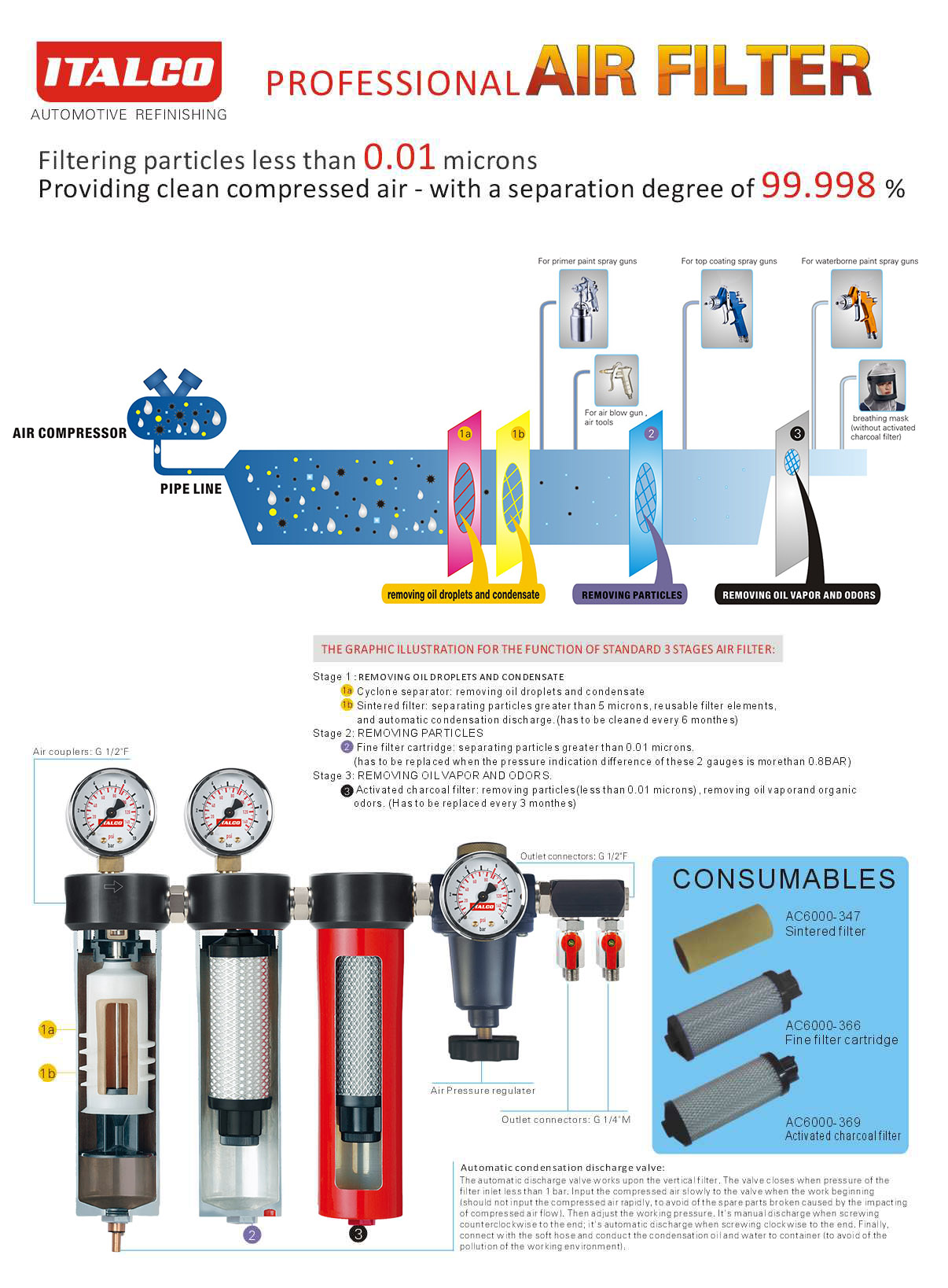

You can fill any need from our product line: from oil and water separator with particle filter to the fine filter, from the activated charcoal filter to the super fine filter.

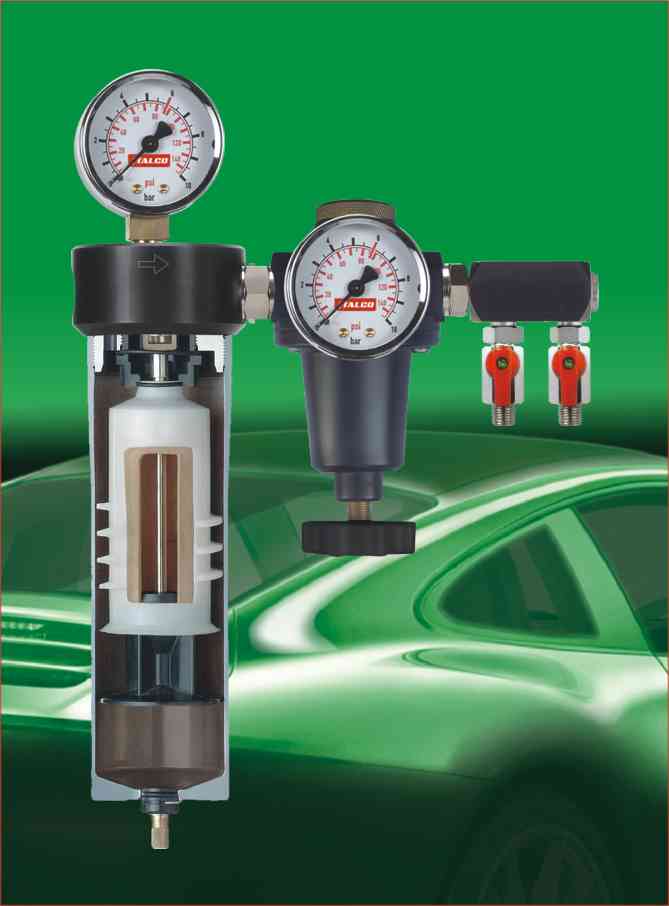

AC6001

with pressure regulator and outlet module



。  The cyclone separator thoroughly removes oil and water from the compressed air(2xG 1/4 ext)

。  The automatic condensate discharge valves prevents condensate from penetrating into the compressed air circuit (low servicing efforts)

。  The large sintered bronze filter, filtering particles of 5 micron size, has a long life time and is easy to clean

。  Sturdy metal housing, making the combi fine filter unit perfectly suitable for temperatures of up to 120° C (248° F)

。  Very high air flow: 2,600 Nl/min at 10 bars (92cfm at 145psi)

。  Air inlet: 1/2 inch

。  Two outlet valves: 1/4 inch

。  The pressure regulator with gauge allows easy pressure adjustment
