Problem solving for any situation

Lack of adhesion, dust, fish eyes and other problems on coated surfaces are usually the result of problems in the compressed air supply. These mistakes are expensive. They can be avoided with 100% technically clean air. ITALCO offers the solution with a high quality, durable filter system.

Compressed air requirements are not always as high as required in the body shop. As a result, ITALCO filters are designed as a modular system so units can be specifically combined to meet any requirement.

Our knowledgeable distributors and dealers will be happy to provide advice.
Please use the ITALCO air quality test kit to evaluate compressed air quality. Helpful tips can also be found in the compressed air adviser.

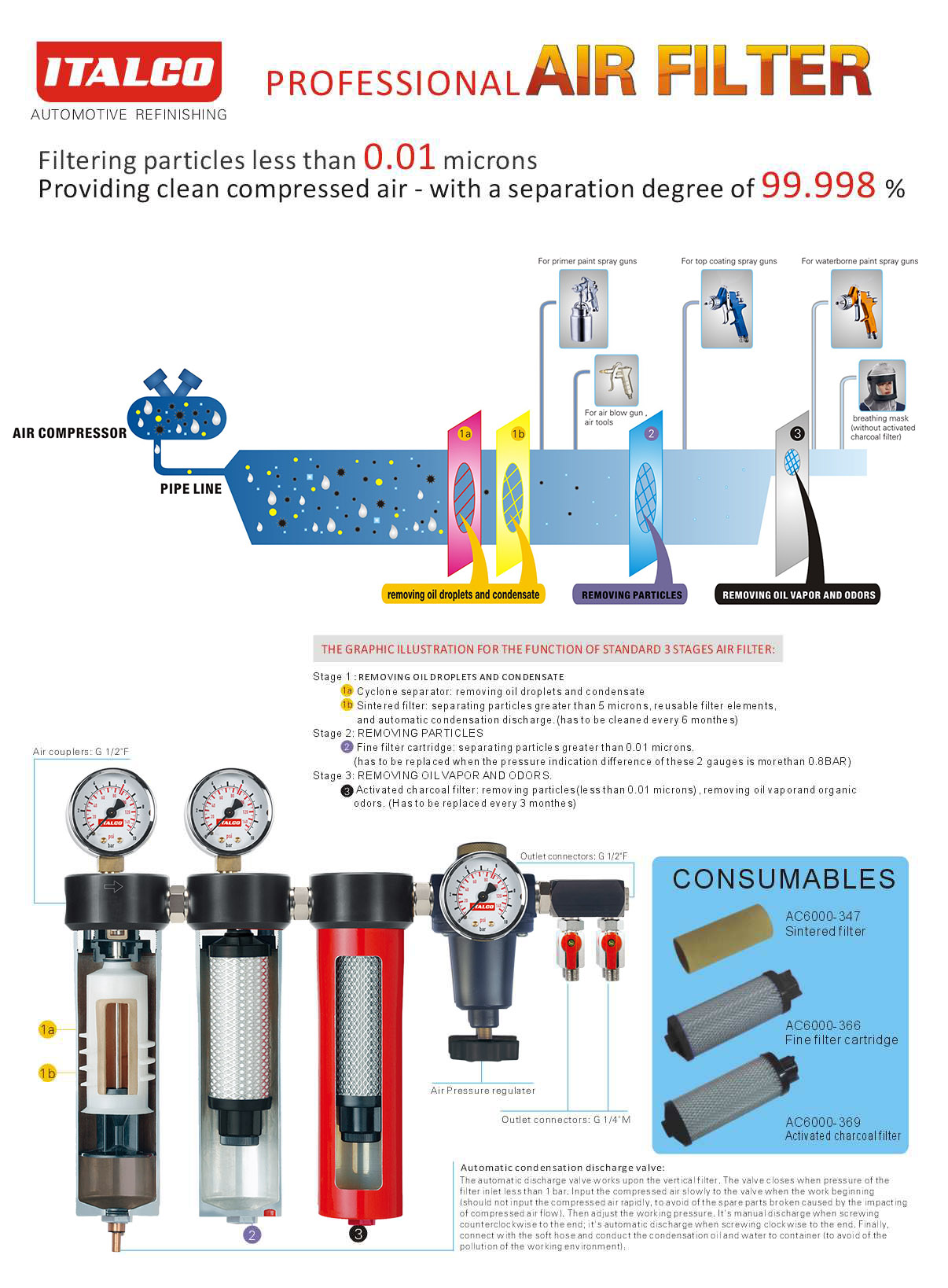

You can fill any need from our product line: from oil and water separator with particle filter to the fine filter, from the activated charcoal filter to the super fine filter.

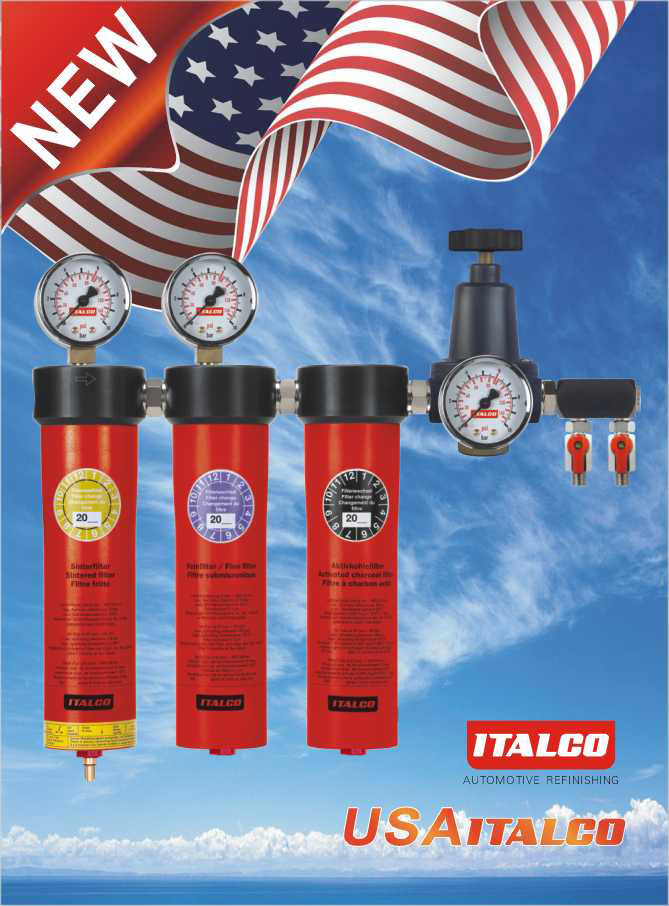

AC6003

Triple stage filter unit complete with fine filter and activated charcoal cartridge with air outlet module

a perfect solution for dry and clean compressed air

Economical combi fine filter unit for highest air quality requirements in paint spraying as well as for fresh air supplied breathing systems.For installation in paint booths, preparation and other workshop areas.

Benefits and specifications



。  Excellent compressed air quality - removes oil, water and particles

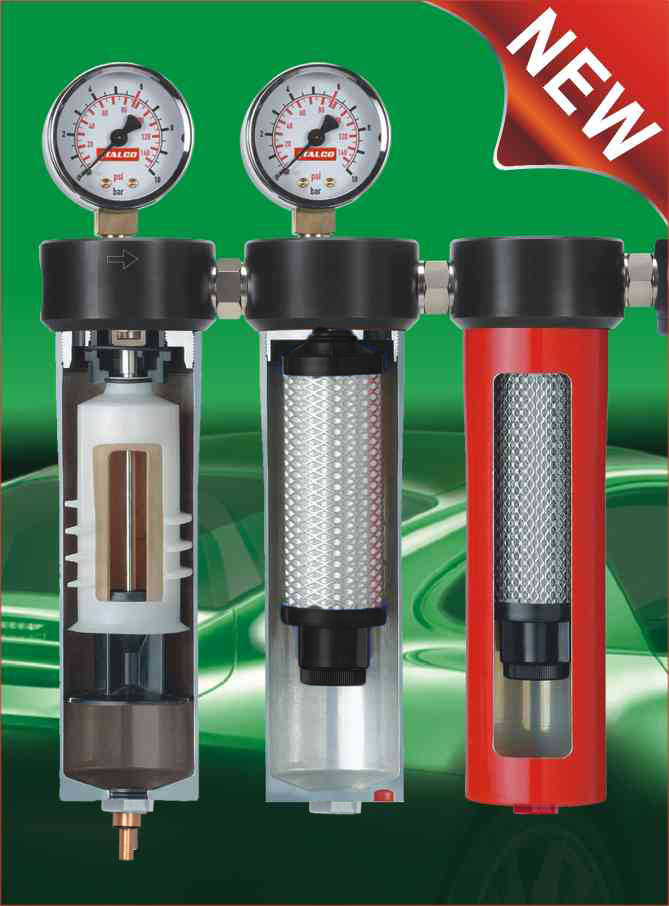

。  Double or triple filter units for the ultimate compressed air purification

。  Activated charcoal filter cartridge (third stage) removes oil vapours and odours from compressed air for breathing purposes

。  Large, highly functional, durable and wear and tear resistant filter components

。  No desiccant related disadvantages

。  Fully automatic condensate discharge valve

。  5 micron sintered filter and 0.01 micron fine filter provide 100 % technically clean air

。  70 cfm (2000 Nl/min) air flow capacity - sufficient air volume to supply two spray booths simultaneously with sprayable and breathable clean air

。  Air inlet G ½ inch internal thread; air outlet G ¼ inch bsp external thread
